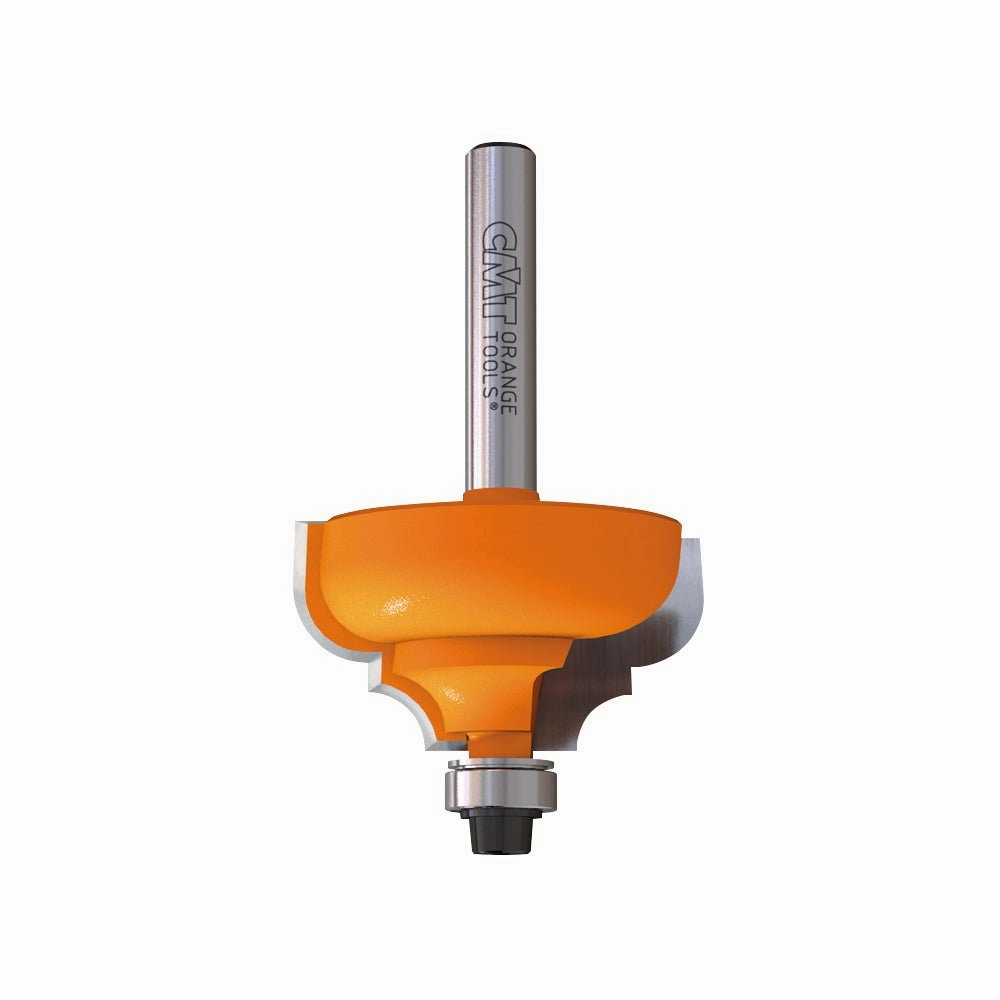

CMT 845.350.11 3/16 to 1/4 inch classical ogee bit features a 1/4 inch shank, radius from 3/16 to 1/4 inch, 1 11/16 inch cutting diameter, 3/4 inch cutting height and right-hand rotation. 2 razor-sharp carbide tipped cutting edges, fatigue proof steel body, anti-kickback design, PTFE non stick coating and equipped with a bearing for easy template work. Inverted ogee profile with the concave edge adjacent to the upper surface of the work piece. An horizontal bead was added along the bottom of the profile to give a decorative detail to the traditional ogee design.

Specifications

• Diameter: 1-3/8''
• Cutting: 47/64''
• Total Length: 2-5/16''
• Radius: 1/4''
• Radius 1: 3/16''
• Rotation: RH
• Shank: 1/4''
• Teeth: 2
• Material: HW
