Product Details
＋

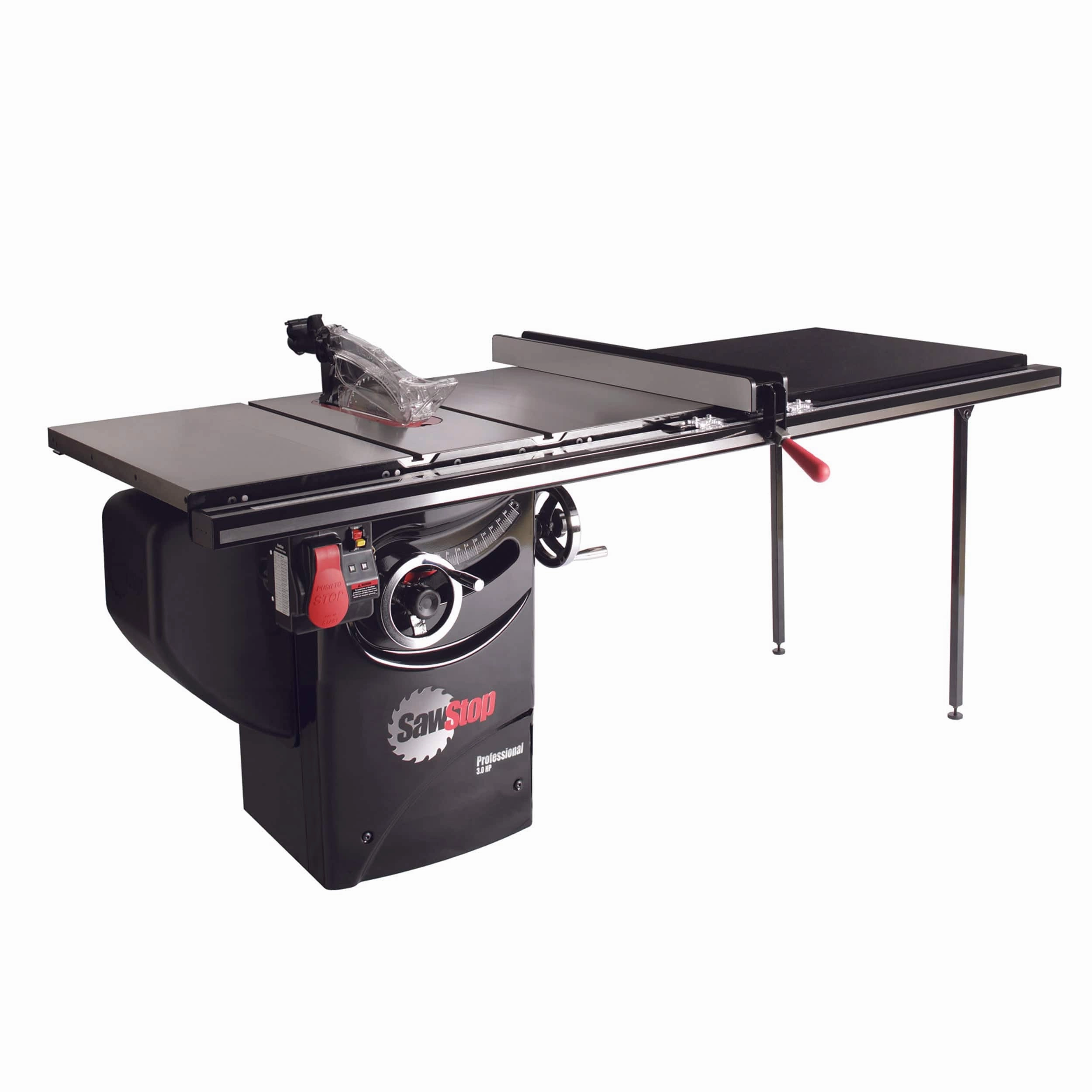

The SawStop® 3 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 230V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.
Features:
- SawStop’s patented safety system
- Riving knife reduces the risk of kickback
- Tool-free quick-change blade guard mount
- Diagnostic system ensures the saw is ready to respond
- Dust-Collection Blade Guard
- 52" Professional T-Glide Fence System provides smooth operation and precise measurement
Specifications:
- Product Type: Cast Iron Table Saw
- Overall saw dimensions: 85-1/4" x 33" x 34"
- Cabinet footprint: 19-3/8" x 19-3/8"
- Cast-iron table: 20" x 27"
- Cast-iron table size with extension wings: 44" x 27"
- Motor: 3 HP, 1-Phase, 230V, 13A
- Weight: 449 lbs.
- Blade: 40-tooth, professional grade, 5/8" arbor
- Blade diameter: 10"
- Blade tilt: left
- Blade kerf: 0.118" (3mm)
- Blade plate thickness: 0.078"
- Max. depth of cut, blade at 0º: 3-1/8"
- Max. depth of cut, blade at 45º: 2-1/4"
- Max. rip, left of blade: 12"
- Dado diameter: 8" (requires a separate brake cartridge and table insert)
- Dado max. width: 13/16"
- Arbor diameter at blade: 5/8"
- Table in front of blade (max. elevation): 10-1/4"
- Table behind blade (max. elevation): 7-1/2"
- Table flatness measured diagonally: 0.010" maximum gap
- Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
- Dust-collection port diameter: 4"
- Riving knife/splitter thickness: 0.078" (2mm)
- Blade guard: polycarbonate, extends only 5/8" to right of blade
- Insert: zero clearance, steel core, ABS surfaces
- Belts: 2 V-ribbed belts – arbor belt is static dissipative
What's Included:
- (1) SawStop PCS™ 3HP Table Saw Body
- (1) T-Glide Pro 52" Table
- (1) T-Glide Pro Fence
- (1) T-Glide Pro 52" Rails
